PowMr 3.2KW Hybrid Solar Inverter 24V 110V

110-120V

$1,499.00

$1,499.00 $271.55

PowMr 3.2KW Hybrid Solar Inverter 24V 110V

$1,499.00

$1,499.00 $271.55

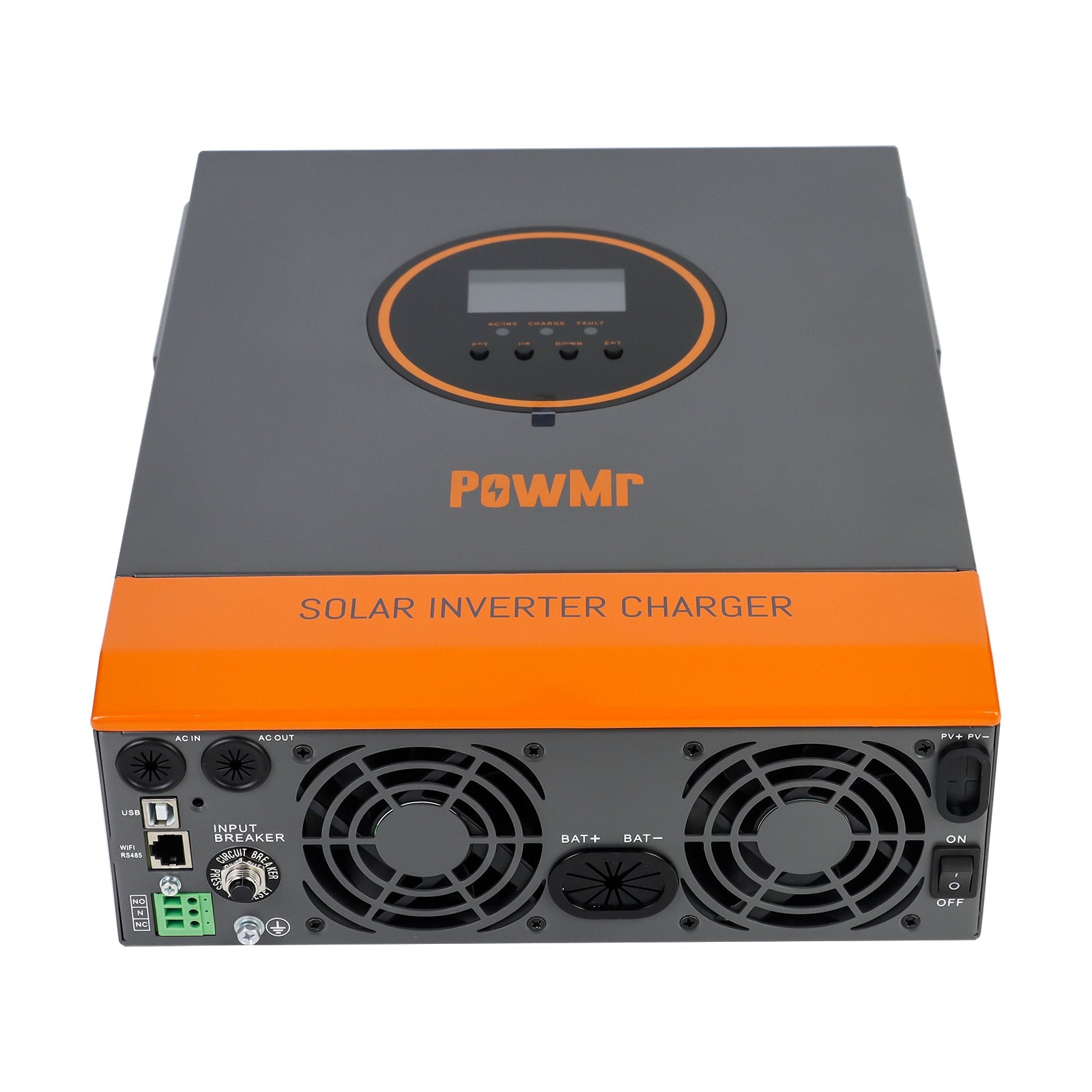

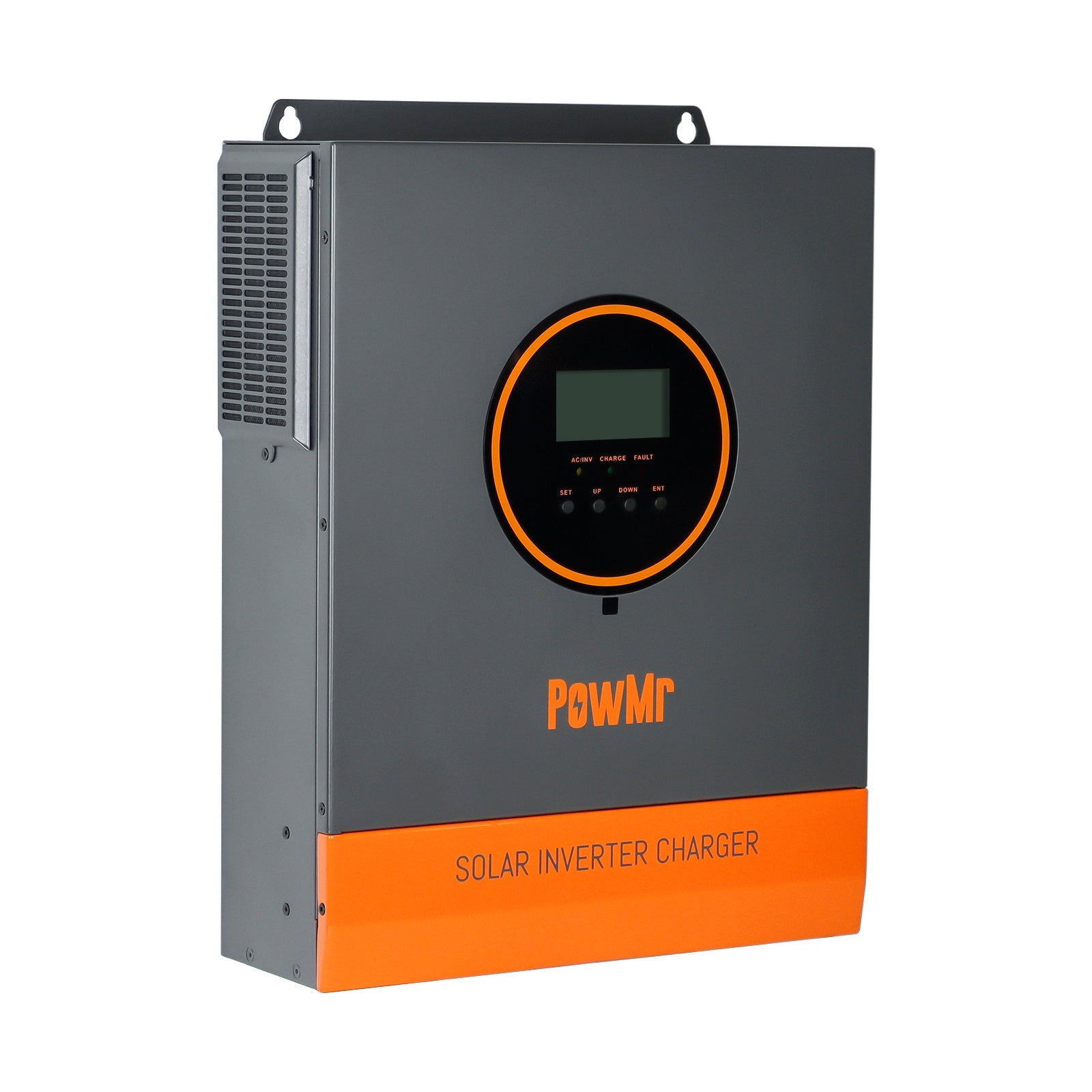

PowMr 3.2KW Hybrid Solar Inverter 24V 110V

Brand Name: PowMr

Certification: CE

High-concerned chemical: None

Is Smart Device: Yes

Model Number: POW-LVM3.2K-24V

Origin: Mainland China

Output Current: MPPT 60A

Output Frequency: 50/60HZ

Output Power: 1 - 200 KW

Output Type: SINGLE

Size: POW-LVM3.2K-24V

Weight: 8KG

is_customized: Yes

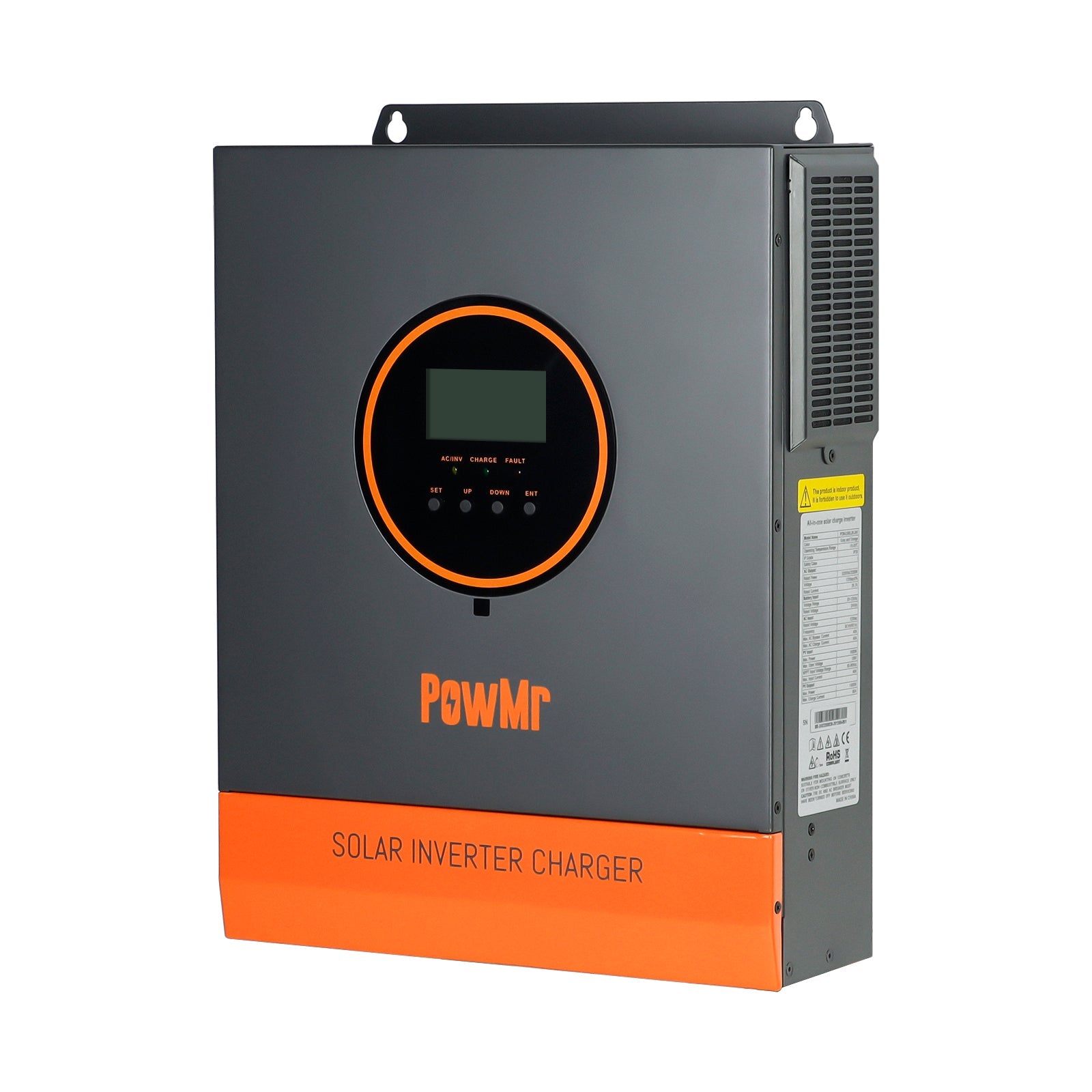

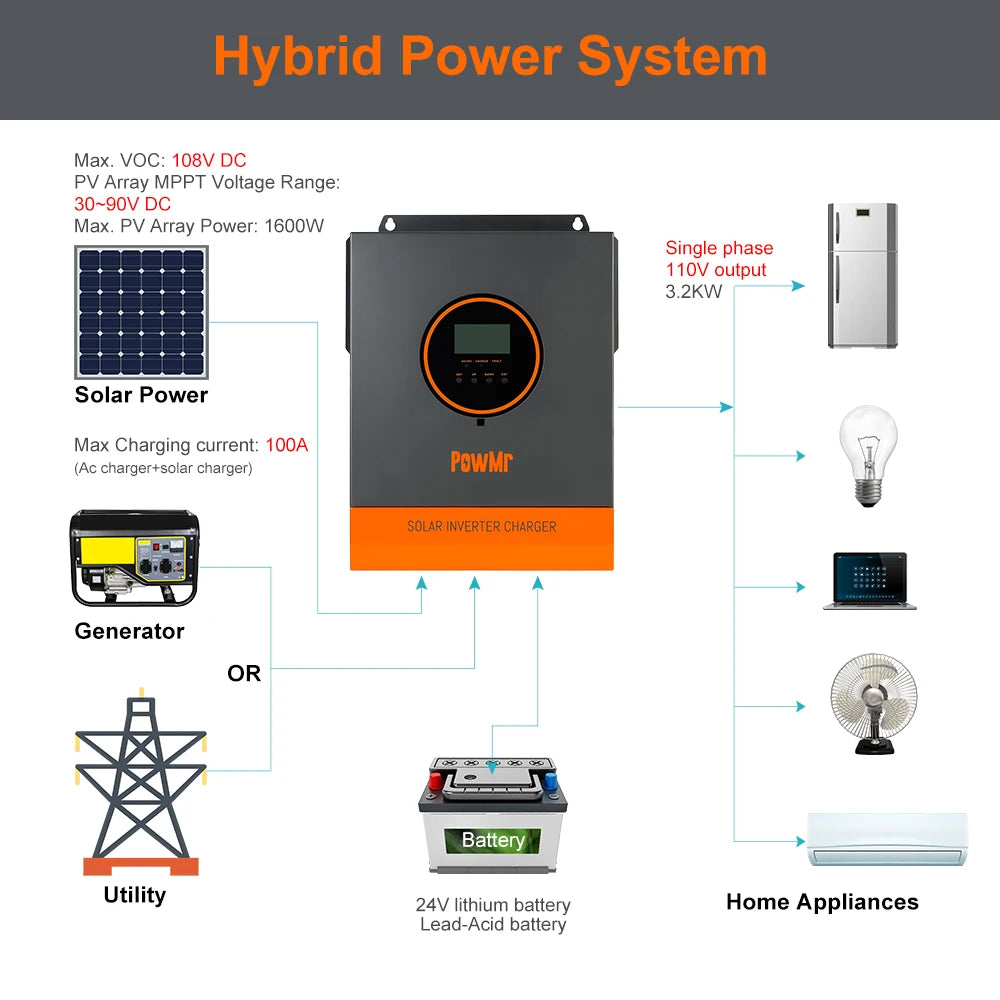

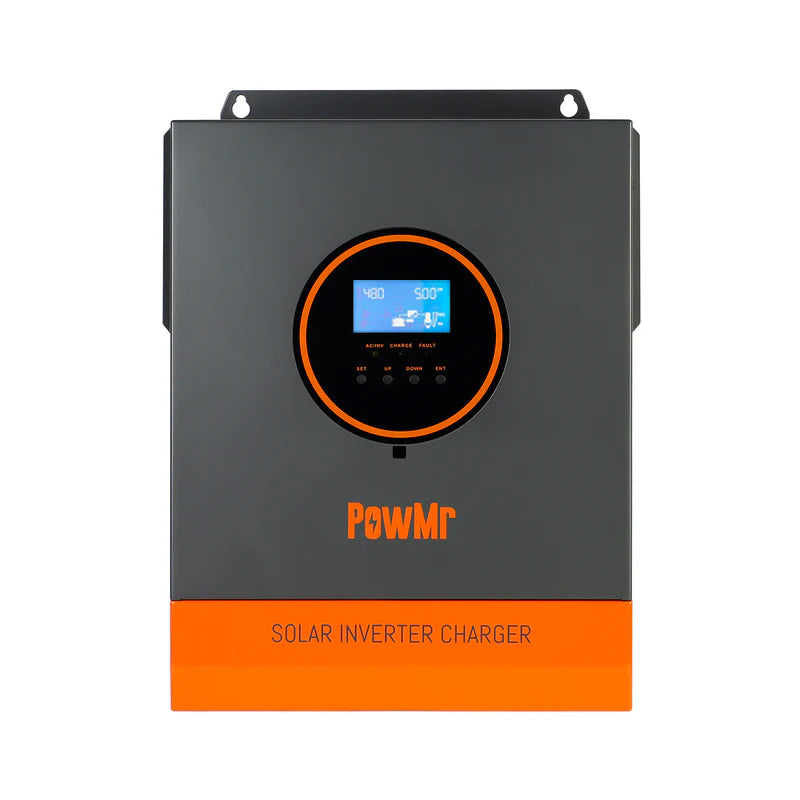

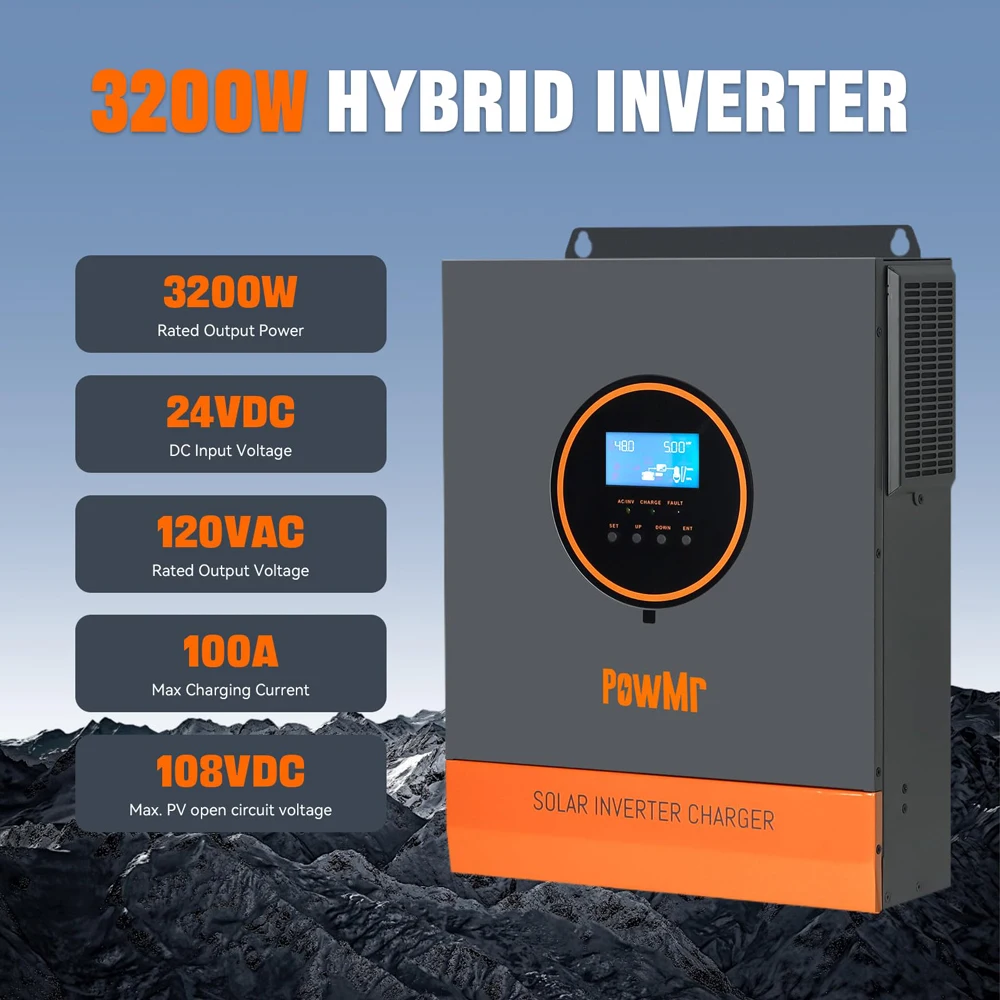

PowMr 3.2KW Hybrid Solar Inverter 24V 110V Off Grid Pure Sine Wave Inverter Single Phase with MPPT 60A Solar Battery Charger

Features:

* Pure Sine Wave inverter, 110/120Vac output.

* Higher output power up to 3200W, supports single-phase devices.

* Fast switching time of 10ms.

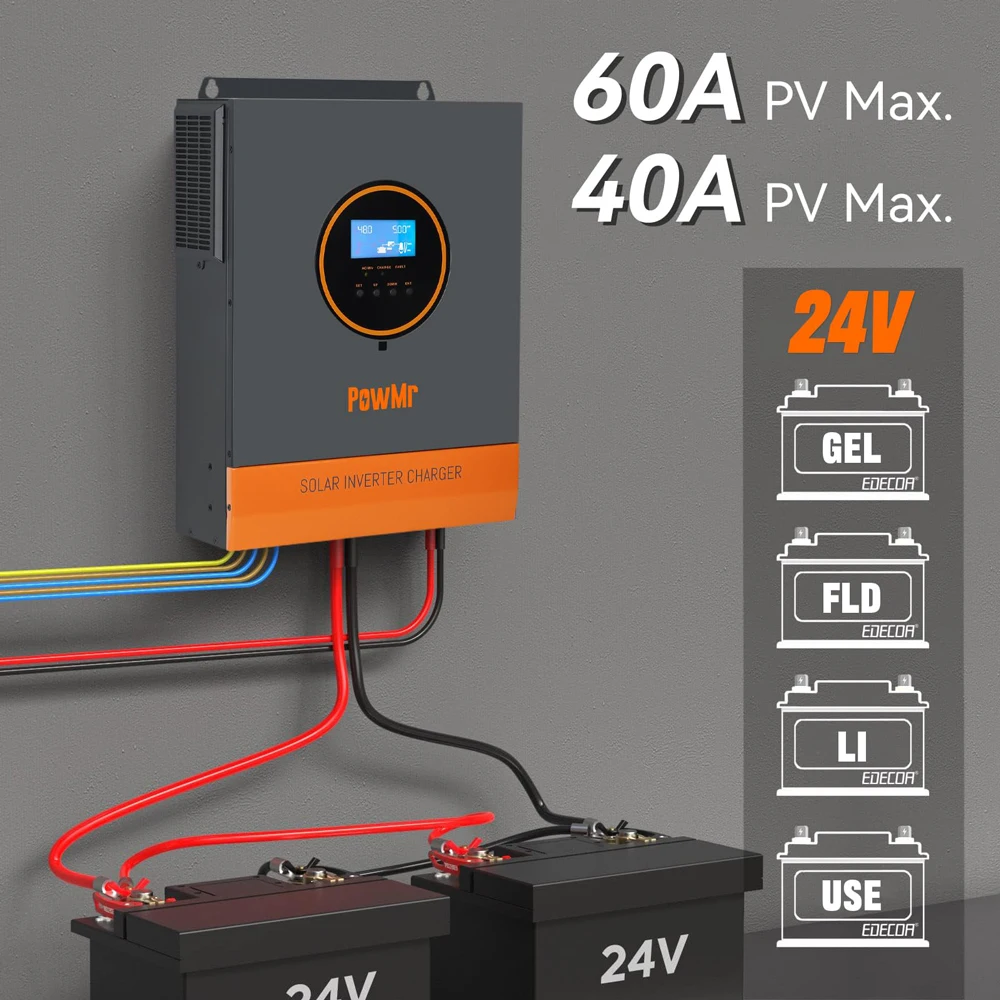

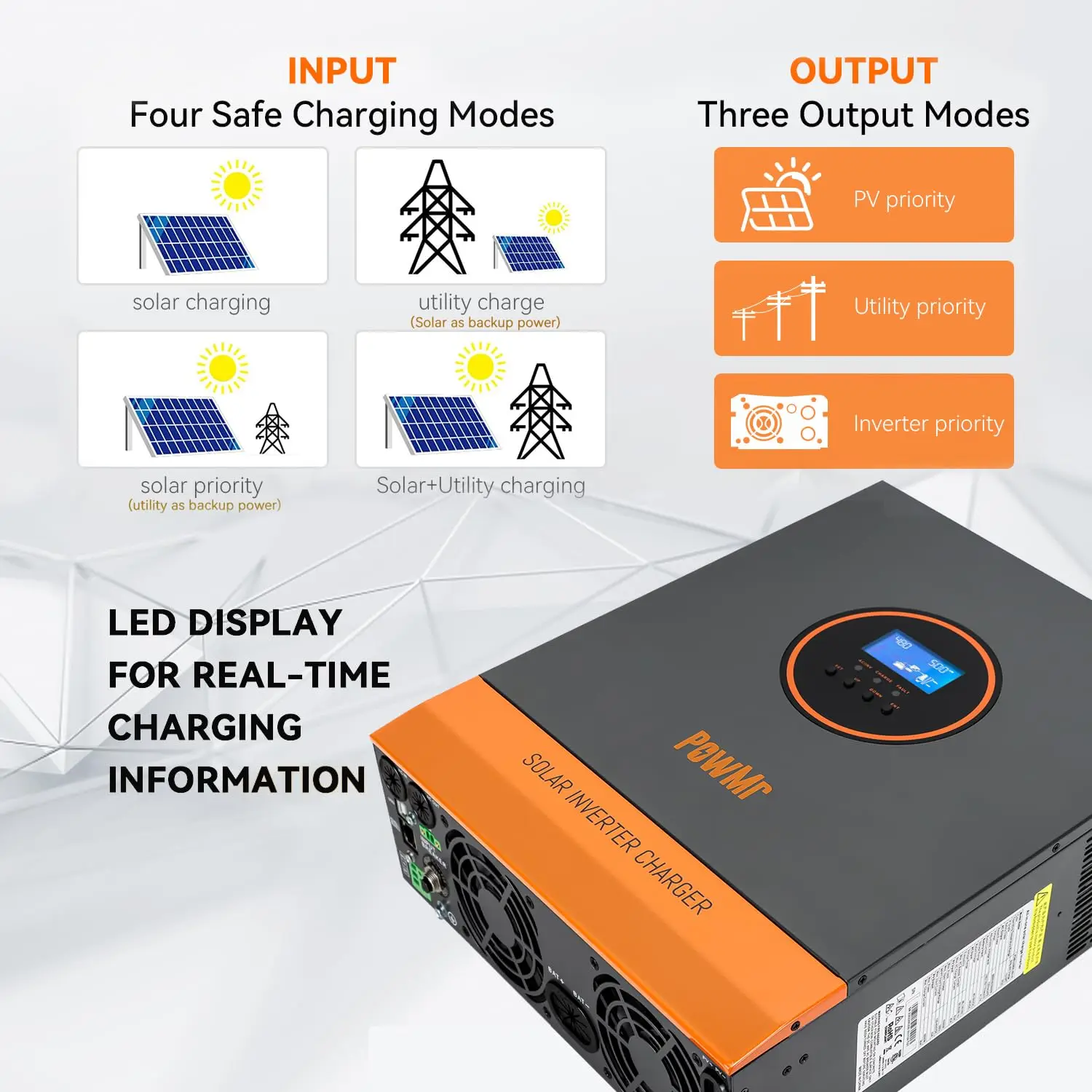

* Compatible with 24V lithium-ion and lead-acid battery, support user-define.

* Max. PV charging current up to 60A.

* Max. AC charging current up to 40A.

* Max. hybrid charging current up to 100A.

* 90~140Vac input voltage range.

* 30~108Vdc wide voltage range for PV access.

* 1 MPPT racker, with 92% efficiency.

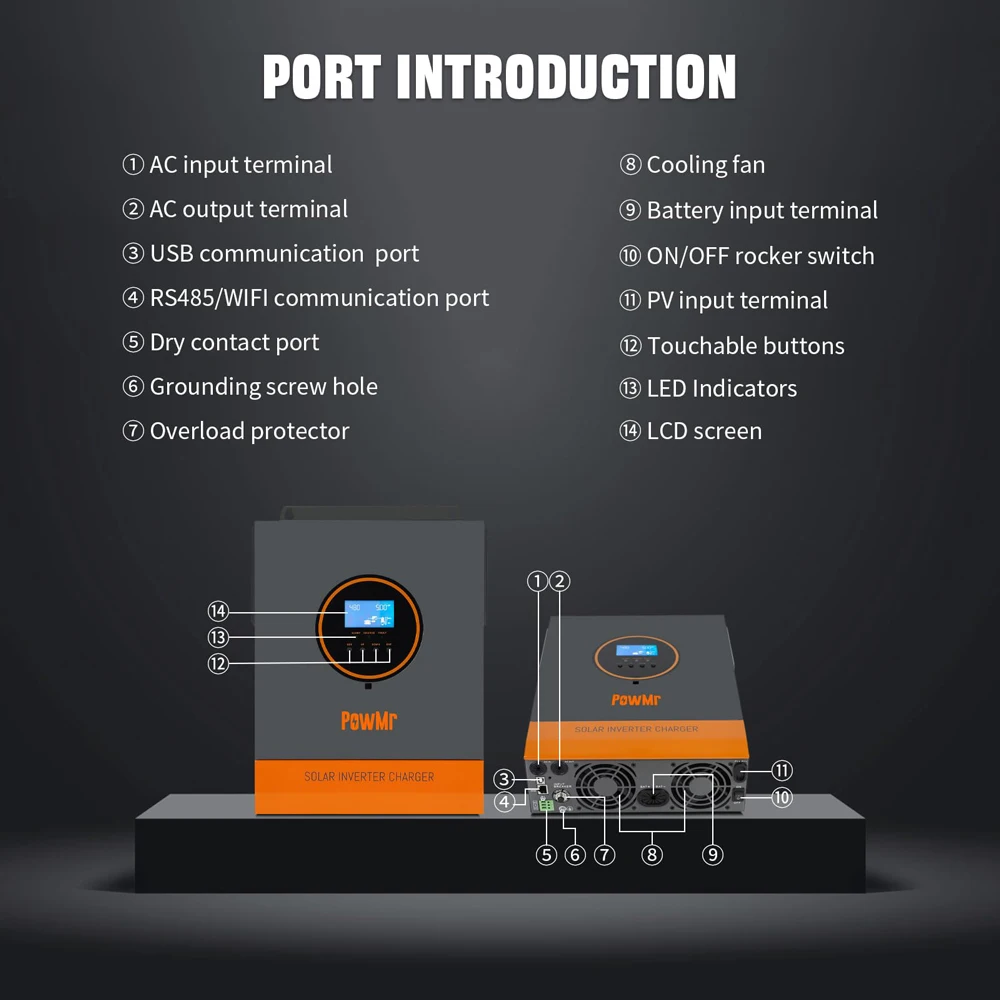

* Configure multiple communication interfaces (USB/CAN/RS485(WiFi/GPRS)/Dry ontact).

* Durable finish with high anti-corrosion.

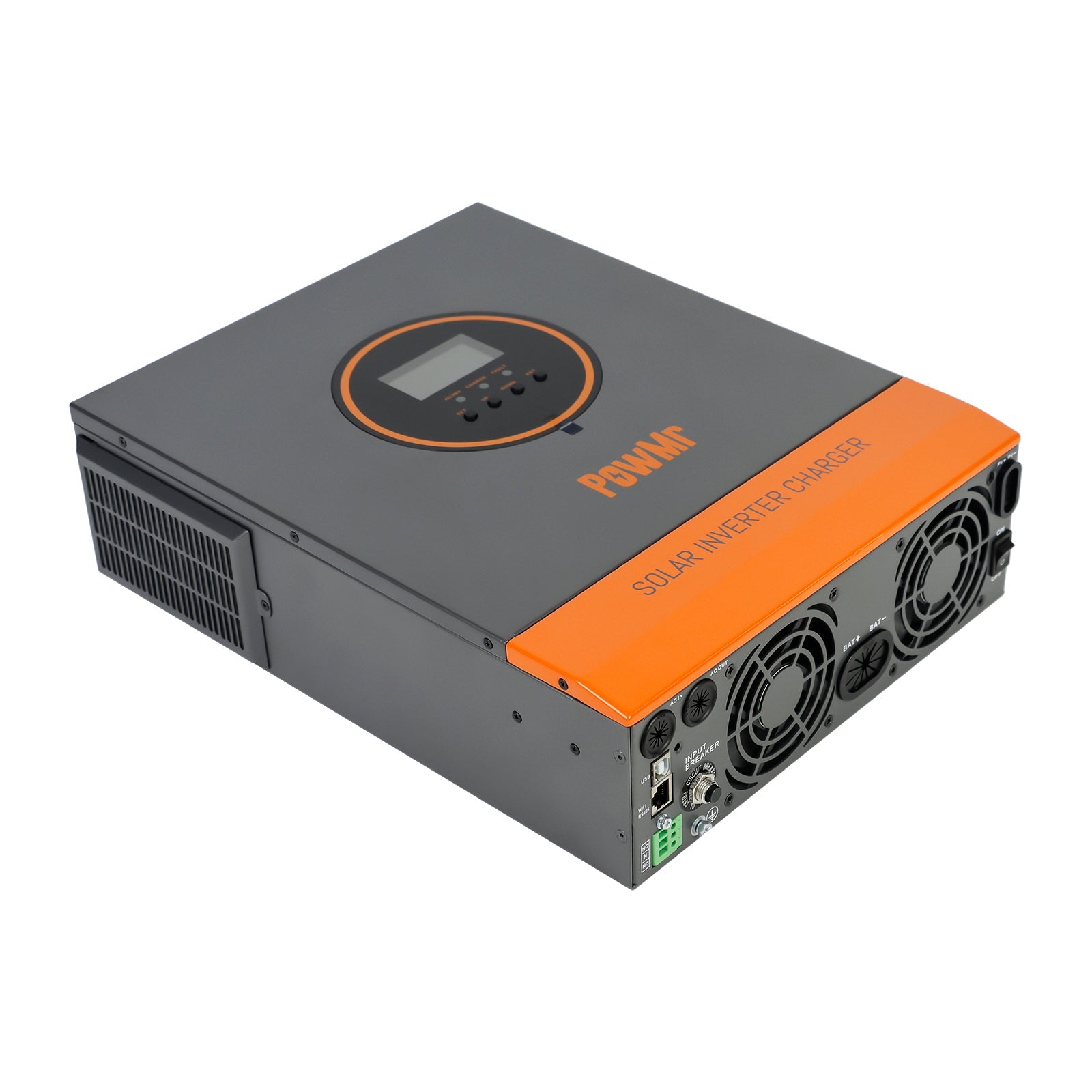

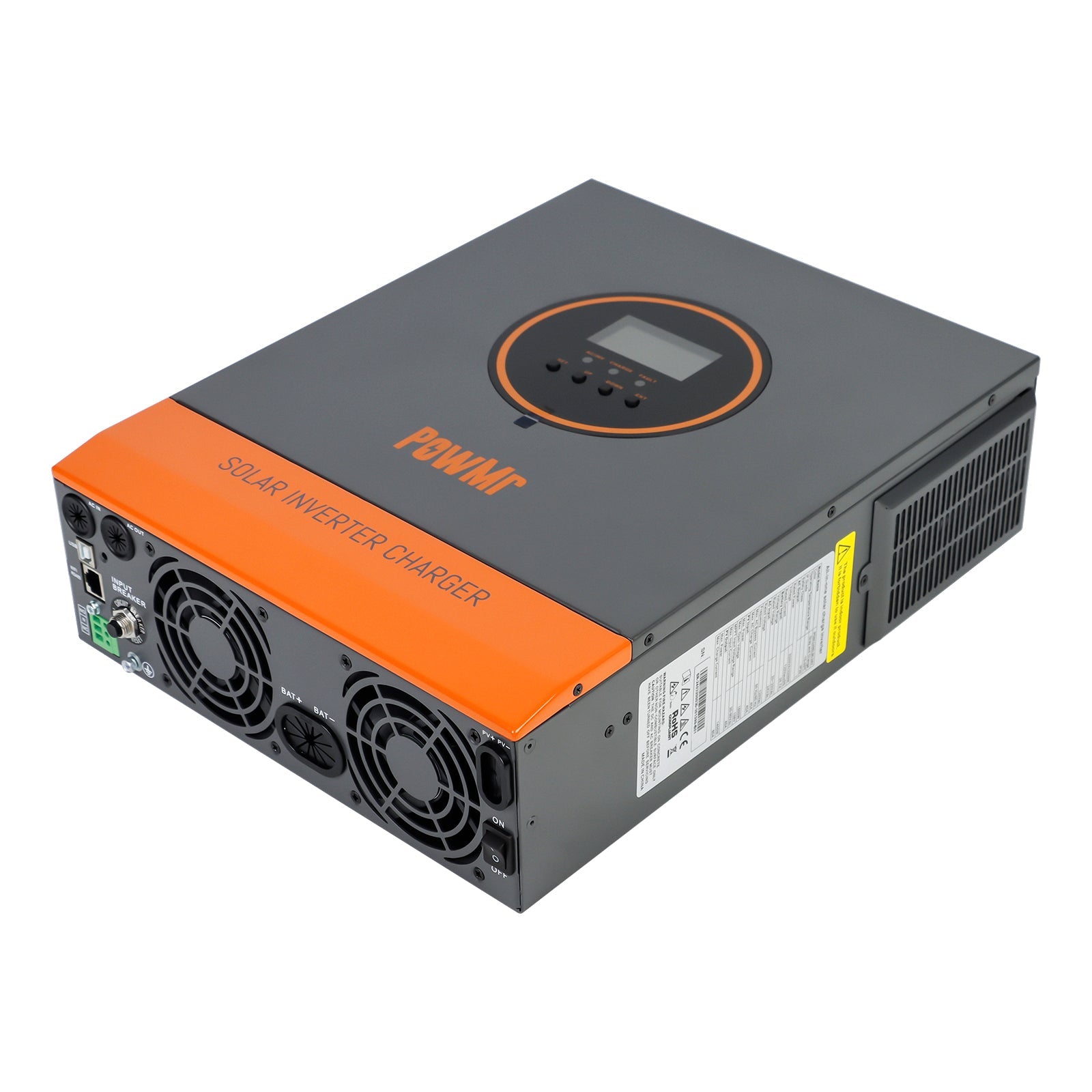

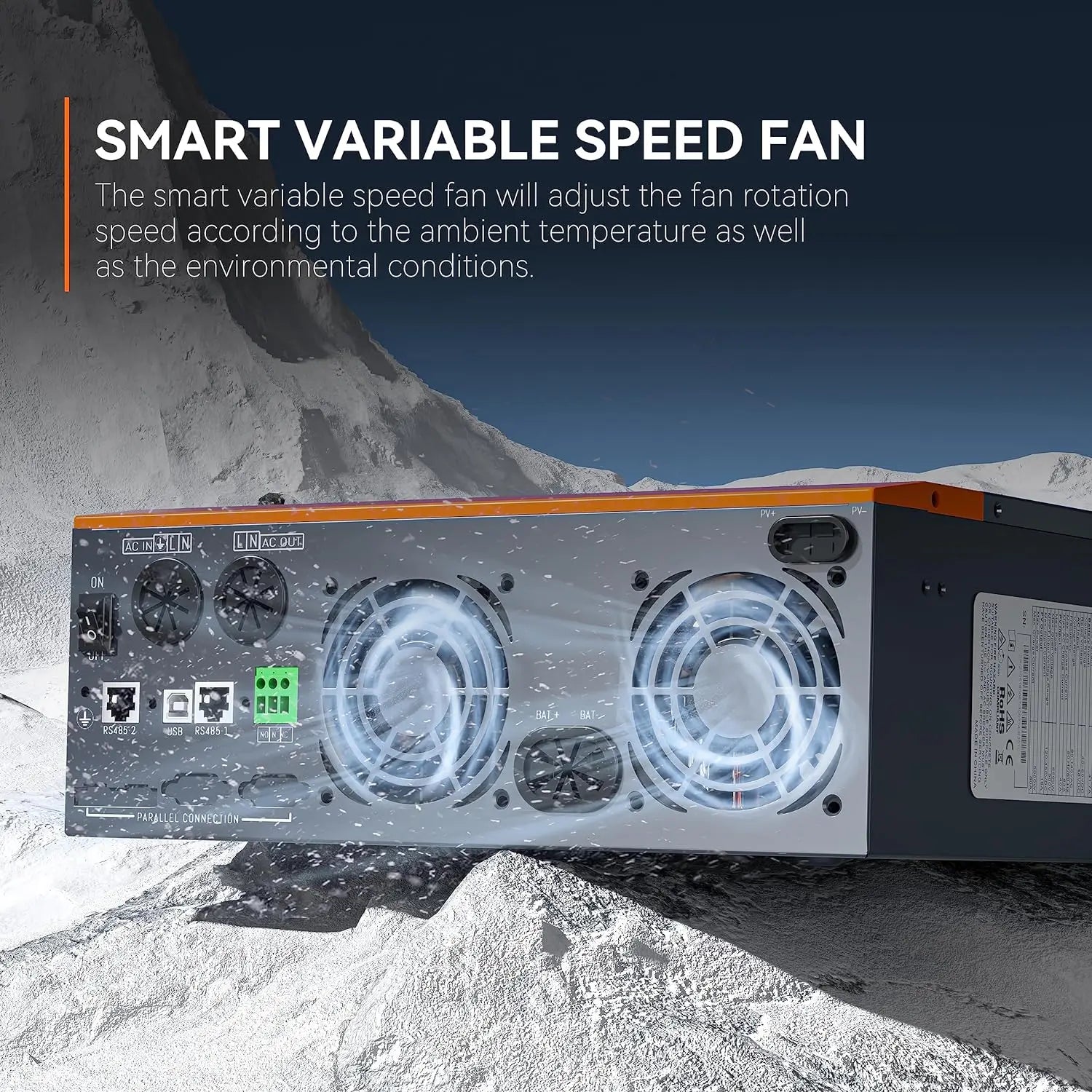

* Effective forced air cooling to ensure that the equipment runs stably.

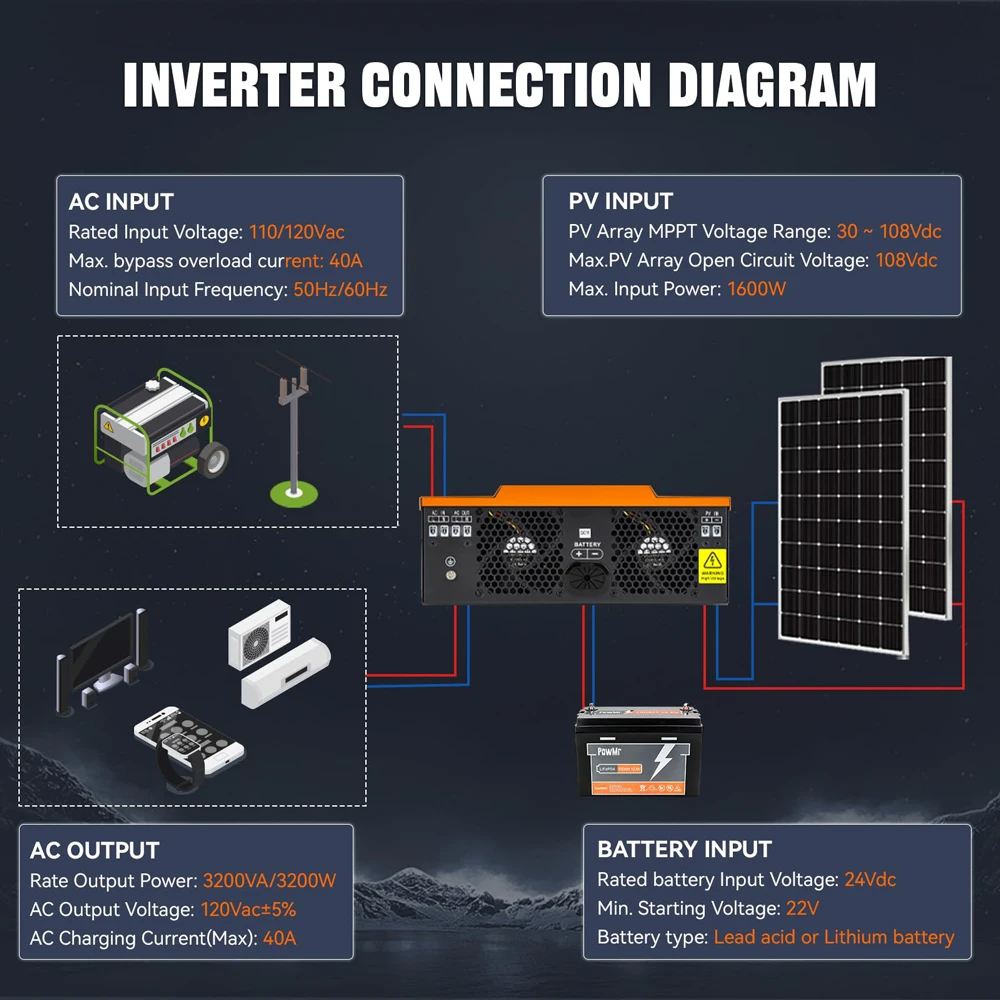

Model	POW-LVM3.2K-24V
AC Mode
Rated input voltage	110/120Vac
Input voltage range	(90Vac~140Vac) ±2%
Frequency	50Hz/ 60Hz (auto-sensing)

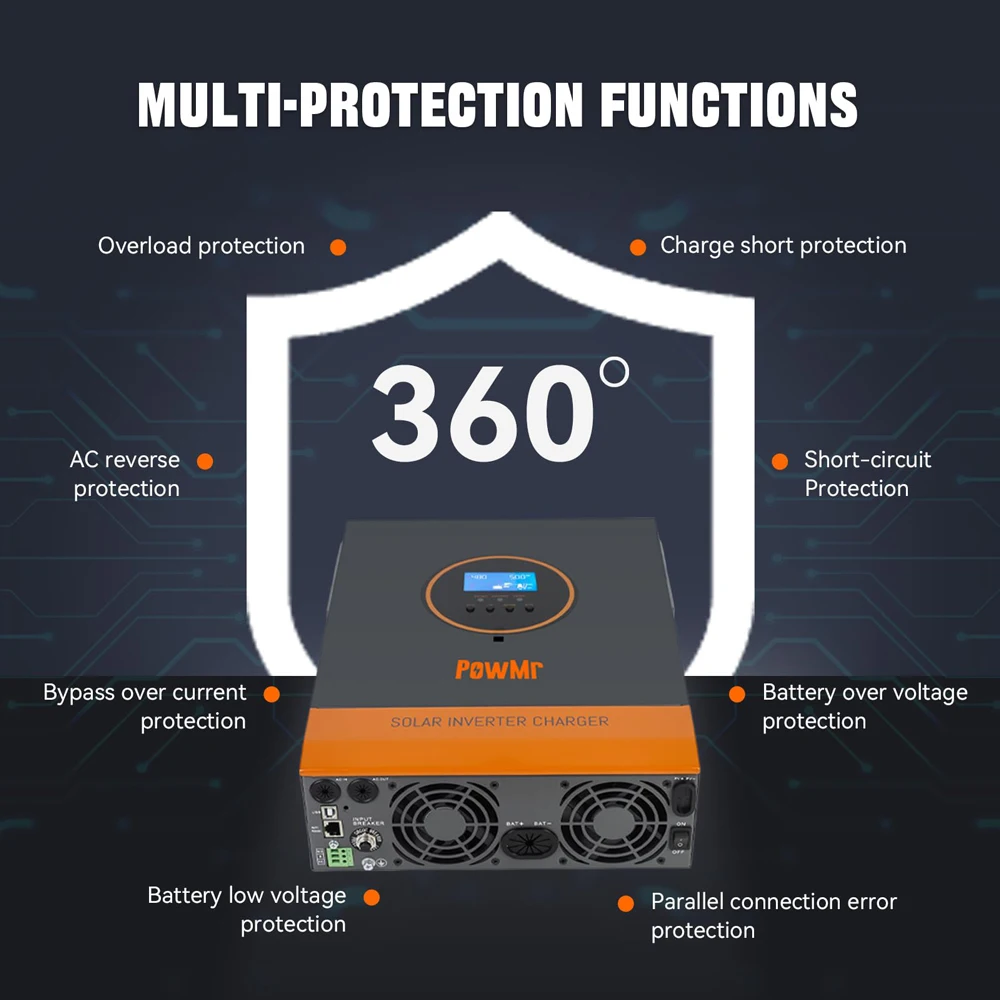

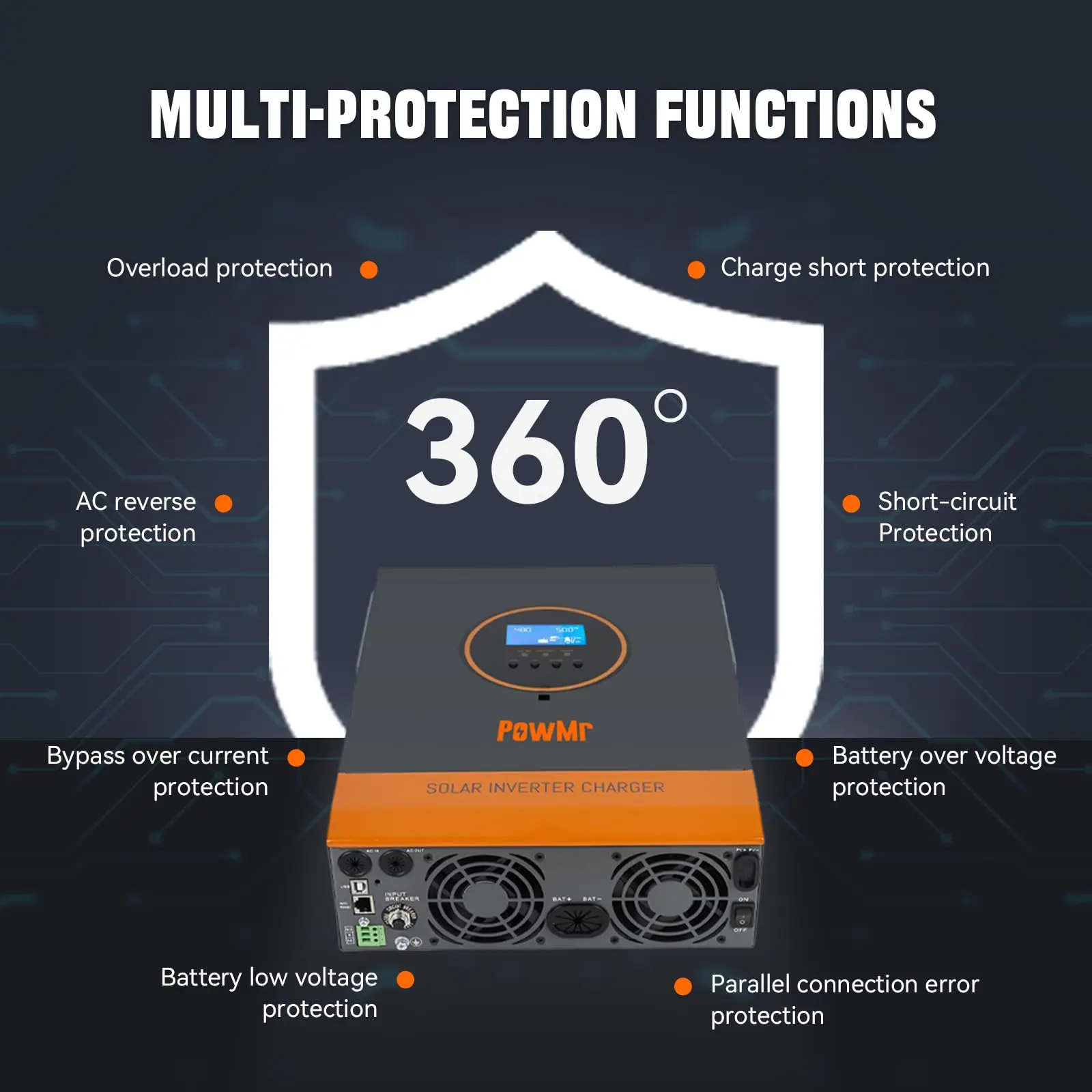

Overload/short-circuit protection	Circuit breaker
Max. efficiency	>92%
Maximum bypass overload current	40A
Inverter Mode
Output voltage waveform	Pure sine wave
Rated output power (VA)	3200
Rated output power (W)	3200
Rated output voltage (Vac)	120Vac
Maximum Efficiency	>92%
Peak power	6000VA
Loaded motor capability	4HP
Rated battery input voltage	24V (minimum start voltage 22V)
Power saving mode	Load ≤50W
AC Charging
Battery type	Lead acid or lithium battery
Maximum charge current(can be set)	0-40A
Charge voltage range	20 ~ 33Vdc
Circuit breaker specification	40A
Solar Charging
Maximum PV open-circuit voltage	108Vdc
PV operating voltage range	30-108Vdc
Battery voltage range	30 ~ 90Vdc
Maximum input power	1600W
Charge current range of solar energy (settable)	0-60A
Charge current range of solar energy (settable)	0-60A
Authentication Specification
EMC authentication grade	EN61000, C2
Noise	≤60dB
Communication interface	USB / CAN / RS485(WiFi/GPRS) / Dry contact
Dimension (mm)	378280103
Weight (kg)	6.8
